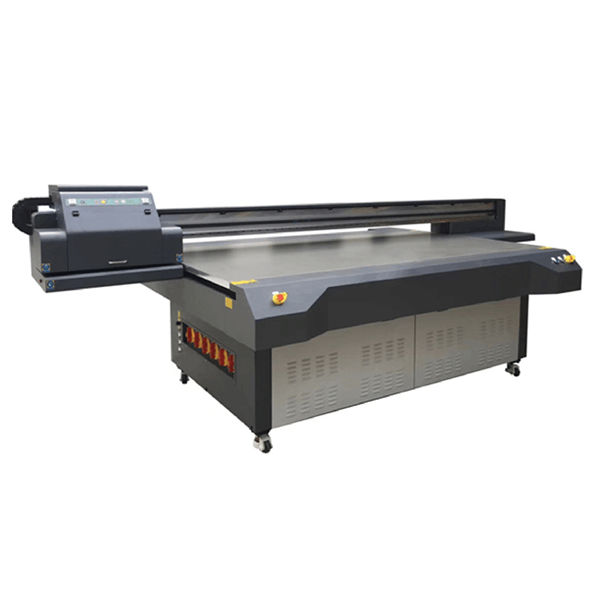

metal uv printer, uv printing machine for metal

metal uv printer, uv printing machine for metalmetal uv printer, uv printing machine for metal

Specifications

Plate Type:Flatbed Printer
Condition:New
Dimensions(L*W*H):480*216*144
Weight:1600
Automatic Grade:Automatic
Voltage:220
RIP:SAI Photoprint server; Onyx
Print head:Konica Minlota/Spectra Polaris/Epson/Toshiba
Printing technology:Digital Inkjet Printing
Ink Type:UV curable VOC ink
Curing system:LED or Mecury UV lamps
Media handle:True flatbed
Media weight:50kg/sqm
Print Size:2.5x1.2m;2*3.2m;1.2*1.2; a4;a3;a2;customized available
Printing Media:Wood, Glass, Acrylic;Leather;Aluminum;Ceramic;plastic;etc.
Type:Digital Printer
After-sales Service Provided:Engineers available to service machinery overseas

We use our expertise in digital printing we have gained over the years
to provide the best in the class quality products and after-sale service at competitive price.
Our overseas engineers will provide technical support over the e-mail, phone, video-call and also door-to-door.

Print head8-16 Konica Minolta printheads
Print modesStandard output mode: 67sqm/hr

Production mode: 48sqm/hr

High precision output mode: 36sqm/hr

Ultra-high quality output mode: 24sqm/hr

Print resolutionUp to 1440x1440dpi
TechnologyPiezoelectric inkjet, UV-curable inkjet, greyscale printing.
ColorCyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White (optional), Varnish (optional)
Ink typesUV-curable, pigment-based ink
Ink cylinder size4 liter (CMYK, LC, LM, W, V)
RIP softwarePhotoprint   Edition, Onyx (Optional)
Color managementICC based color management, adjustable curve and density
File formatsTIFF, JPEG, Postscript, EPS, PDF, etc.
Media handlingFlatbed, sheet feed, and roll feed with optional Roll-to-Roll upgrade kit. Vacuum platform supports various rigid materials. Automatic media registration system is used for easy loading and accurate printing. With an optional, unique blowing function, it makes medium unloading very easy.
Rigid mediaStandard vacuum table support rigid materials up to 254x122cm, 50kg/sqm
Roll-fed mediaOptional Roll-to-Roll upgrade kit supports flexible media up to 250cm wide, with a roll diameter 30cm, up to 100kg in weight
ThicknessUp to 100mm
Data transmission
Data interfaceHigh speed USB transmission
UV energy sourceDual shuttered UV lamps, independent user-selectable control of shutter aperture and two lamp power levels
Dimensions (l x w x h)590x206x144cm, Shipping: 600x246x150cm
Printer weight2000kg
Operating conditions
Temperature20 to 30°C
Relative humidity20%-80%, non-condensing (minimum 40% recommended for synthetic media to avoid static electricity; maximum 60% recommended for paper-based media to avoid buckling
Power supply
Maximum power8500 watts
RequirementsInput voltage: 200to 240VAC, signal-phase, 50/60Hz, 32A max.
WarrantyOne year (Please consult your local dealer for details)

Automatic Registration Pin System together with Auto Cleaning System and Auto Media Calibration:
Auto System simplifies the media location, printhead cleaning and automatic adjusts to the optimized print height.
Make it easier to locate or remove heavy media, like stone, metal, aluminum and so on.
Intellectualized UV lamps curing system with shutter:
Double throughput and protect operators’ eyes.

Particular Negative Pressure System:
Avoid causing the air bubble and inking starvation in printhead.
Ultra wide-format printing:
Full bleed size 3.2*2.0 meter, can print on all types of substrates which are up to 100mm thickness.

Stable printing:
Konica Minolta print head with Heater and Sensor inside, Intellectualized Printhead Temperature Control can realize the best condition for ink ejecting and make sure the stability of printing.

Three layers Printing Innovation:
Special technology of controlling print heads to realize “color-white-color” and “white-white-color” 3D printing.
Dedicated White Ink:
With the Highest Full Version SAI RIP software, eight major applications as a base, overcoat, fill color, underspot color, overspot color can be adopted on transparent or dark substrates to realize vivid appearance.

Variable Vacuum Control System:
Separate sectional vacuum suction effectively avoids printing substrates getting twisted.

Anti-crash design:
Avoid any accidents caused by carriage crash, effectively protect print heads.
Multi Application Area
Application areas: Packing industry, 3C Product Printing industry, Decoration industry, Glass industry, Sign industry, Exhibition industry, Leather industry, Album printing industry, Furniture printing industry, Textile printing industry, etc.

Typical Substrate

Acrylic, Glass, Ceramic Tile, Floor Ceiling, Aluminum, Aluminum Plastic Composite, Wood, Billboards, KT board, Foam Board & Flexible Media like Wall Paper, Glistening Film, Canvas, Leather, Paper, etc.
